what is Customized Calibration Sleeve advantage ？

Advantages of a Customized Calibration Sleeve for PVC-UH Pipe Extrusion

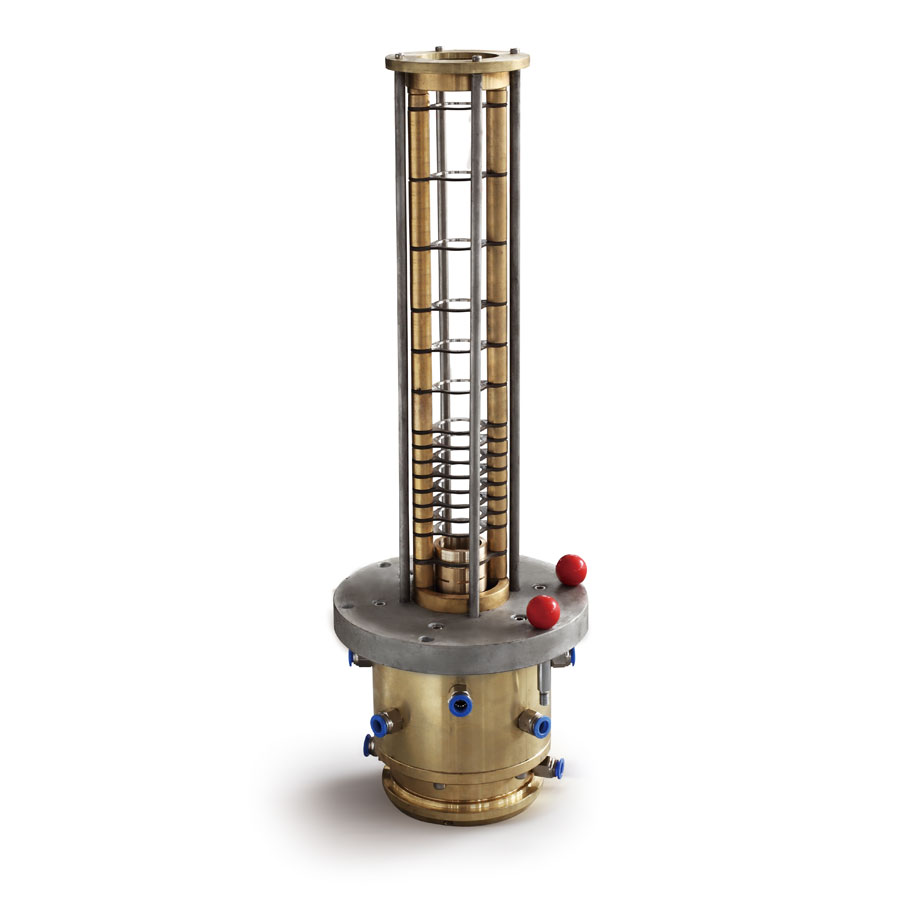

A calibration sleeve is a crucial component in the vacuum calibration tank that ensures the precise shaping, cooling, and dimensional stability of PVC-UH pipes during extrusion. A customized calibration sleeve is specifically designed for unique production needs, offering several advantages:

1. Precision and Dimensional Accuracy

Tailored to meet specific pipe diameter, wall thickness, and ovality requirements.

Ensures tight tolerances and consistent quality.

Reduces scrap rates caused by dimensional variations.

2. Optimized Cooling Efficiency

Custom design enhances heat transfer and cooling uniformity.

Supports high-speed extrusion without deformation.

Reduces internal stress in PVC-UH pipes, improving mechanical properties.

3. Improved Surface Finish

Special surface coatings (e.g., Teflon, hard chrome plating) prevent scratches, drag marks, and friction.

Ensures a smooth, glossy pipe surface that meets industry standards.

4. Enhanced Vacuum Control

Optimized vacuum slot positioning improves pipe roundness and prevents collapsing or warping.

Reduces air leakage, improving suction efficiency for stable calibration.

5. Compatibility with Multi-Layer & Special Pipe Designs

Supports single-layer, multi-layer, or co-extrusion pipe structures.

Allows customization for socketing zones, ribbed pipes, or foam-core pipes.

6. Increased Production Speed

Minimizes friction and resistance, allowing for higher haul-off speeds.

Custom airflow and water cooling design maintain stability at high extrusion rates.

7. Longer Service Life

Made from high-grade stainless steel, bronze, or wear-resistant alloys.

Reduces wear-and-tear, minimizing maintenance and replacement costs.

8. Reduced Energy Consumption

Lower vacuum and cooling water requirements optimize power usage.

Less drag force on the pipe means less load on the haul-off unit.

9. Adaptability to Different Extrusion Conditions

Designed for specific material formulations, ambient conditions, and production line speeds.

Provides consistent performance across different production batches.

Conclusion，A customized calibration sleeve significantly enhances the efficiency, quality, and reliability of PVC-UH pipe production. It ensures precision, cooling efficiency, surface quality, and speed optimization, ultimately reducing costs and increasing productivity.
