Plastic Film and Sheet Extrusion Plants prepare for what kind equipment

Equipment Required for Plastic Film and Sheet Extrusion Plants

Setting up a Plastic Film and Sheet Extrusion Plant requires various types of equipment to ensure efficient production. The key components include:

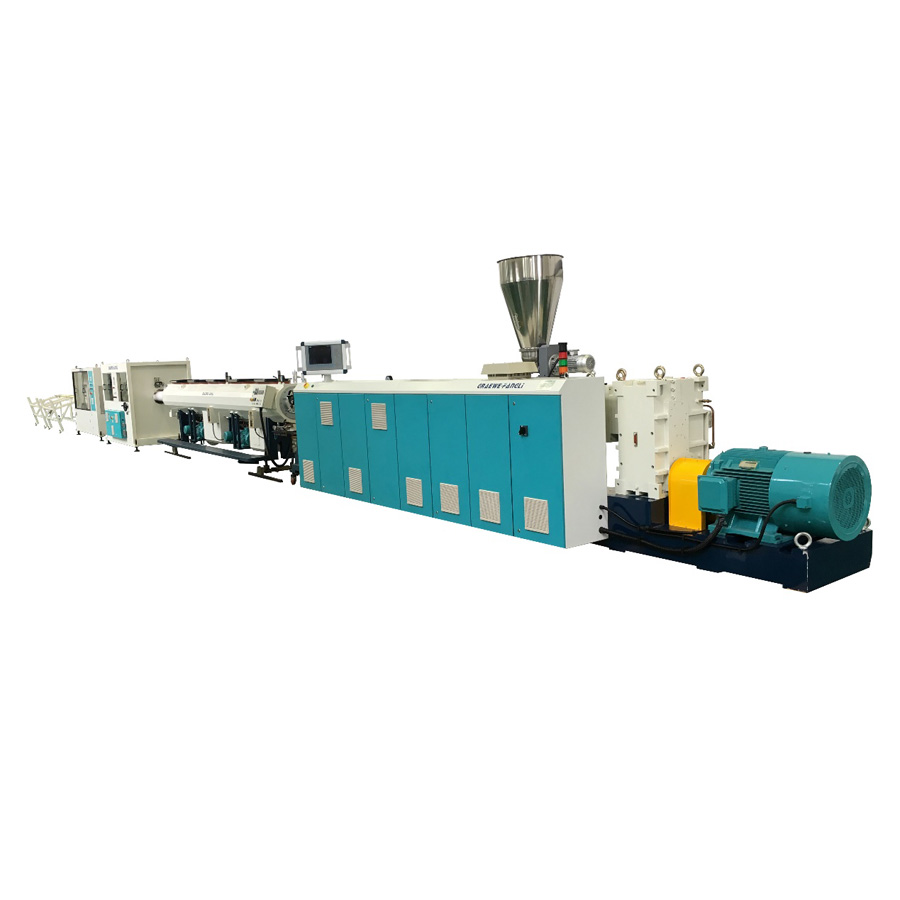

1. Extruder System

Single-Screw or Twin-Screw Extruder: Heats and melts the raw plastic pellets or granules.

Hopper Feeder: Feeds raw material (plastic resins, additives) into the extruder.

Barrel & Screw: Responsible for melting, mixing, and pushing the molten plastic forward.

Heating & Cooling Systems: Maintain precise temperature control during processing.

2. Bulk Spiral Die-Head

Distributes molten plastic uniformly across the die opening.

Critical for achieving consistent film thickness and quality.

Designed for blown film extrusion or flat sheet extrusion.

3. Extrusion Dies

Blown Film Die (Annular Die): Used for producing thin plastic films.

Flat Die: Used for sheet extrusion to create plastic sheets of varying thickness.

4. Cooling System

Air Ring: Used in blown film extrusion to cool and stabilize the film bubble.

Water Bath: Used in sheet extrusion for cooling and solidifying the extruded plastic.

Chill Roll Stack: Cools and sets the plastic sheet in sheet extrusion processes.

5. Haul-off / Take-up Unit

Pulls the extruded film or sheet at a controlled speed.

Includes rollers or belt systems for maintaining tension and ensuring smooth output.

6. Winding or Cutting System

Automatic Winder: Rolls up extruded plastic film.

Sheet Cutter: Cuts extruded sheets into the desired sizes.

Guillotine Cutter: Used for precise trimming of sheets.

7. Corona Treatment System

Used to improve surface adhesion for printing or lamination.

Commonly applied in packaging film production.

8. Thickness Measurement & Quality Control Equipment

Laser Gauging System: Ensures consistent film or sheet thickness.

Optical or Mechanical Inspection Systems: Detects defects like bubbles, uneven thickness, or contamination.

9. Material Handling & Feeding System

Vacuum Loader & Conveyors: Transfers plastic raw material from storage to the extruder.

Dosing & Mixing Units: Ensures the right blend of polymer, additives, and color masterbatches.

10. Automation & Control System

PLC (Programmable Logic Controller) Systems: Automates temperature, speed, and pressure control.

HMI (Human-Machine Interface) Screens: Allows operators to monitor and adjust machine settings.

Additional Equipment for Specialized Processes

Co-extrusion Equipment: If producing multi-layer films.

Embossing Rollers: For texture patterns on sheets.

Lamination & Coating Units: Adds extra layers or protective coatings.
