What is the Spiral Die-head UL, why need that ?

What is a Spiral Die-Head UL?

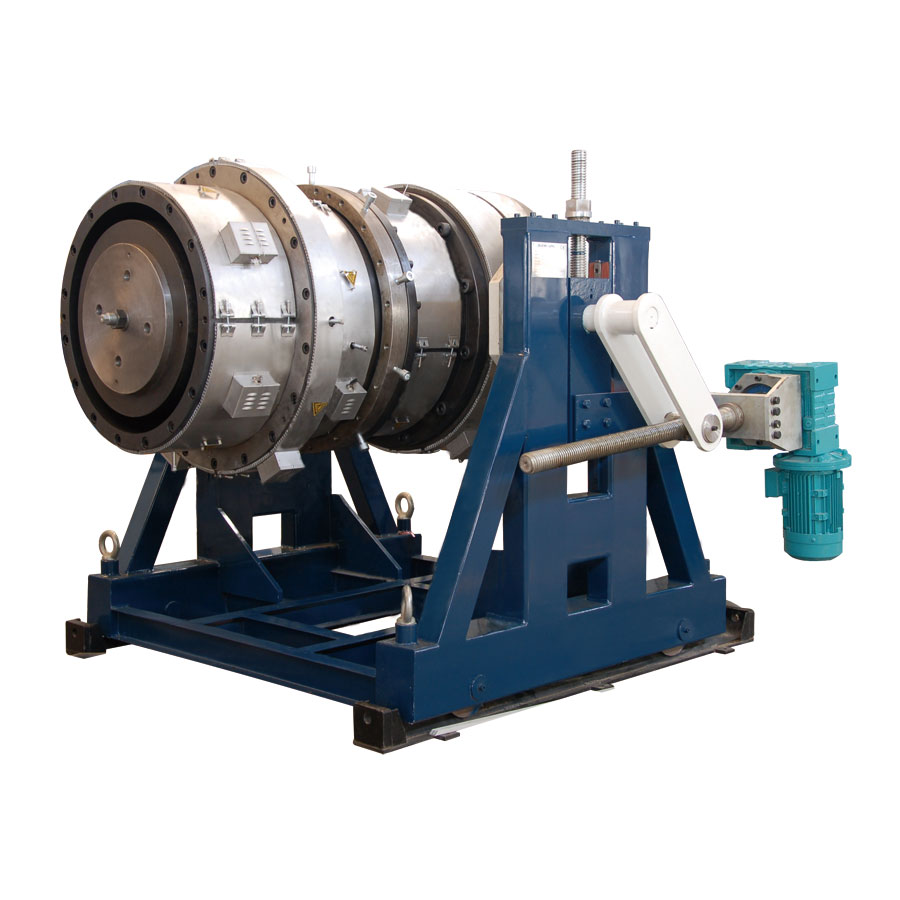

A Spiral Die-Head UL refers to a spiral-type extrusion die-head that complies with UL (Underwriters Laboratories) standards for manufacturing pipes, tubes, or profiles. The spiral die-head is a critical component in the extrusion process, responsible for evenly distributing molten plastic to form a pipe with uniform thickness and high precision.

The UL certification ensures that the die-head and the extrusion process meet safety, performance, and material quality requirements, especially for industries like electrical conduit, gas piping, and fire protection systems.

Why Use a Spiral Die-Head?

A spiral die-head offers several advantages compared to traditional mandrel or spider-type die-heads, making it an essential tool for high-quality pipe production.

1. Uniform Material Distribution

The spiral channels evenly distribute molten plastic, ensuring consistent wall thickness.

Prevents weld lines or weak points that can reduce pipe strength.

Achieves better mechanical properties, making it ideal for high-pressure pipes.

2. Improved Flow Stability

Minimizes material flow resistance and reduces melt memory effects.

Ensures smooth extrusion, even at high output rates.

Helps in processing multi-layer and composite pipes.

3. Higher Production Efficiency

Allows for faster extrusion speeds while maintaining high quality.

Reduces waste and defects, improving overall productivity.

Suitable for continuous operation with minimal maintenance.

4. Better Surface Finish & Dimensional Accuracy

Produces pipes with smoother inner and outer surfaces, reducing friction in applications like water and gas transport.

Maintains precise diameter and roundness, which is crucial for UL-certified applications like electrical conduits.

5. Versatility for Various Pipe Materials

Suitable for HDPE, PVC, PPR, PP, and multilayer composite pipes.

Can be customized for different pipe diameters and thicknesses.

Why is UL Certification Important for a Spiral Die-Head?

If the pipe extrusion line needs to meet UL standards, the die-head must comply with UL guidelines to ensure:

Safety and performance consistency in the final pipe product.

High-quality output for critical applications (electrical, plumbing, fire safety).

Regulatory approval for selling pipes in North American and international markets.

Conclusion

A Spiral Die-Head UL is essential for high-efficiency, precision pipe extrusion that meets UL safety and quality standards. It offers uniform material distribution, better surface finish, and higher production speeds, making it ideal for UL-certified pipe manufacturing.
