German Design Haul-off Equipment ?

German-designed haul-off equipment is globally recognized for its precision, durability, and integration quality in plastic pipe extrusion lines (such as for PE, PVC, PP, corrugated, and multilayer pipes). Here's what defines German haul-off technology, its advantages, and why it’s preferred in high-performance extrusion setups:

What Is German-Design Haul-off Equipment?

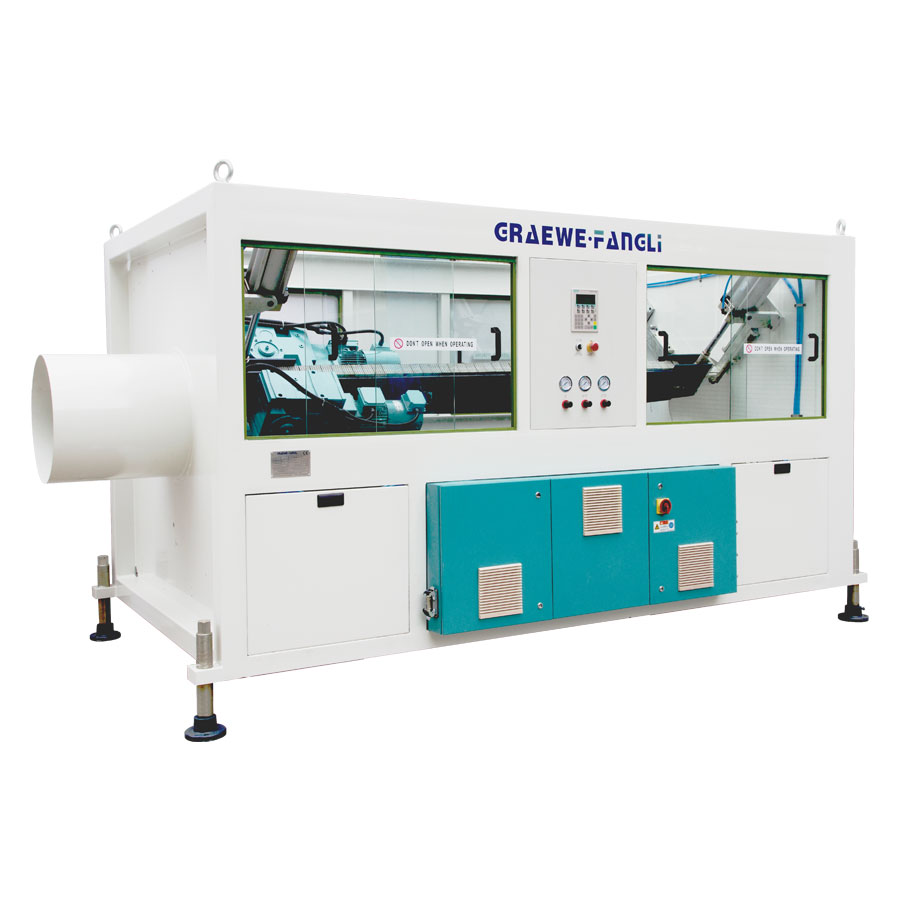

A haul-off (caterpillar or belt pulling machine) is used to continuously pull extruded pipe/tube out of the die head and through the cooling/calibration section at a precise speed, ensuring:

Accurate pipe dimensions

Uniform wall thickness

Controlled surface finish

German design refers not just to origin, but also to:

Engineering philosophy (modular, precision-driven)

Build quality

Use of premium components (e.g., Siemens motors, Festo pneumatics)

✅ Key Advantages of German-Designed Haul-off Units

1. Ultra-Precise Speed Control

Uses servo-driven motors with closed-loop control for smooth pulling

Prevents deformation and guarantees wall thickness within ±0.1 mm tolerance

Example: KraussMaffei, Reifenhäuser, or Battenfeld haul-offs can synchronize to extruder output and inline measuring systems.

2. Superior Traction System

Equipped with multi-track caterpillars (2–12 tracks) depending on pipe size

Tracks are coated with anti-slip rubber, PU, or kevlar for grip without pipe damage

High-contact surface = stable traction on large-diameter or thick-walled pipes

3. Robust Construction

Heavy-duty frames reduce vibration, ideal for high-speed or thick-wall pipe extrusion

Wear-resistant gears and shafts extend service life even under 24/7 production

4. Full Synchronization with Line PLC

German systems are highly integratable with the rest of the extrusion line (extruder, cutter, coiler)

Often feature touchscreen HMI, fault diagnostics, and production recipes

5. Noise & Energy Efficiency

Precision gears and soundproof casing reduce operational noise

Efficient motor systems (IE3/IE4-rated) help reduce energy consumption by up to 15–20%

6. Low Maintenance Requirements

Modular design allows quick belt/track replacement

Self-lubricating bearings and auto-alignment systems minimize downtime

Example Applications

         Pipe Type                                German Haul-off Used For

HDPE Gas/Water Pipe                  Multi-track caterpillar with high pulling force

PVC Conduit Pipe                         Belt-type haul-off with soft grip

Corrugated Pipe                          Vacuum wheel haul-off system

Multi-layer Composite Pipe           Synchronized pulling with weight sensors

Leading Brands Offering German-Design Haul-offs

1. KraussMaffei – heavy-duty haul-offs for large-diameter PE/PP pipes

2. Battenfeld-Cincinnati – modular haul-offs with energy-optimized drives

3. Reifenhäuser – advanced synchronization and servo control

4. Rollepaal – known for PVC pipe extrusion with precise haul-off systems

5. SICA (Italian with German integration) – automation-rich haul-off cutters
