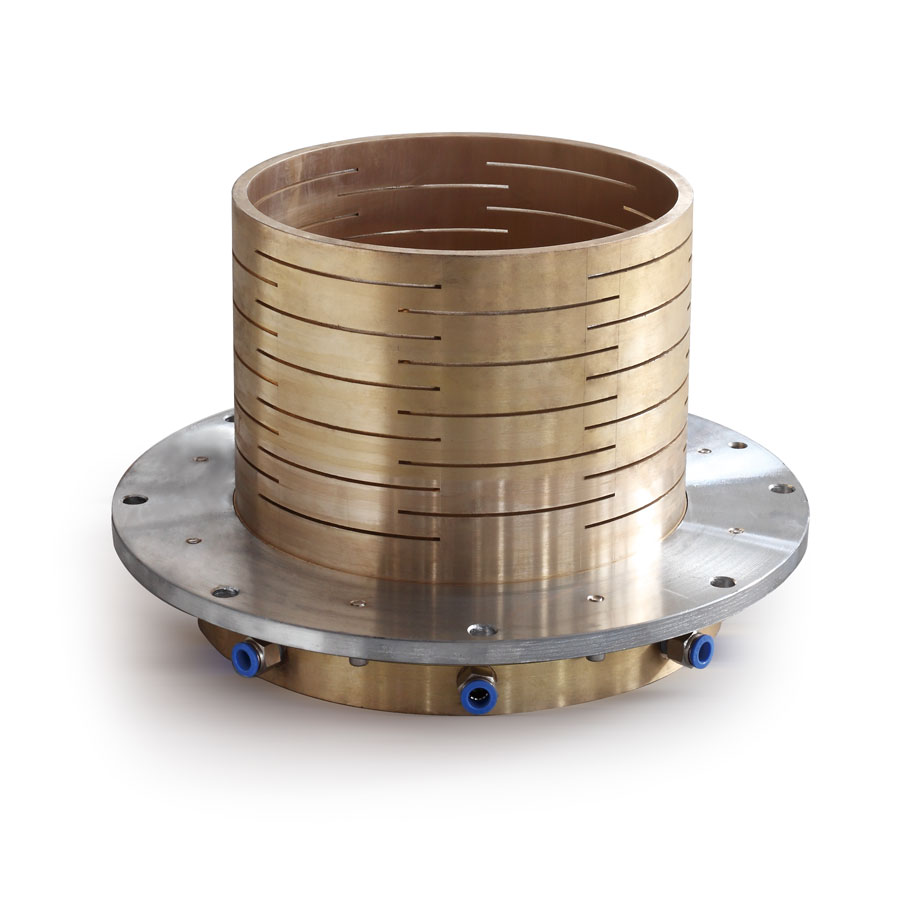

Durable Calibration Sleeve

The Durable Calibration Sleeve is typically used in the context of pipeline pigging, flow measurement systems, or various types of industrial equipment requiring precise calibration. The sleeve acts as a reference or interface to ensure tools or instruments are aligned, sized, or functioning correctly during calibration. Here's how to effectively use one:

✅ How to Effectively Use a Durable Calibration Sleeve:

1. Understand Its Purpose

It's used to simulate pipe dimensions and provide a known reference during calibration of pigs, gauges, or inspection tools.

It ensures tools pass/fail based on tolerance to the real pipeline.

2. Pre-Use Inspection

Check the sleeve for any signs of wear, corrosion, or damage.

Ensure dimensions match the pipeline specification or test requirements.

Confirm it’s clean and free of debris inside.

3. Proper Setup

Place the sleeve on a flat, stable surface, ideally secured in a cradle or fixture.

Align the tool or pig so it enters the sleeve smoothly.

Use lubrication if needed to avoid damaging the tool or sleeve.

4. Calibration Process

Pass the tool or pig through the sleeve slowly and observe for:

Unobstructed passage

Proper sealing (if checking seals)

Sensor or gauge response

If the tool hangs up or doesn’t pass, check for dimensional issues or damage on the tool.

5. Record and Validate

Log the results: pass/fail, pressure readings, sensor data, etc.

Use multiple sleeves of varied tolerances to check for margin of error.

6. Post-Use Care

Clean the sleeve to remove any debris or grease.

Store it in a dry, controlled environment to prevent wear.

Document the sleeve’s use for traceability.

Tips:

Use certified sleeves when traceable calibration is needed.

Always verify the internal diameter (ID) matches the tool’s specs.

Consider using a digital gauge alongside for dual validation.
