What is Fancy Belling Equipment?

Fancy Belling Equipment refers to a specialized machine used in plastic pipe extrusion lines to form bell-shaped ends (sockets) on pipes—typically PVC, UPVC, or CPVC—to allow for easy and leak-proof joining without external couplings.

"Fancy" Belling Equipment — What Makes It Special?

While basic belling equipment performs standard socketing, "fancy" belling equipment typically includes advanced features or customizations. These may include:

✅ Key Features of Fancy Belling Equipment:

1. Multi-type Socketing

Supports various standards: U-type, R-type, Z-type, or rubber-ring-type sockets.

2. Automatic Operation

Fully automated belling, heating, forming, and cooling process.

Often integrated inline with the extrusion line.

3. Servo Control Systems

For precise motion, consistent bell dimensions, and high repeatability.

4. Multi-Station Belling

Some models offer double or triple stations to improve productivity and cycle time.

5. Infrared or Hot Air Heating

Efficient and uniform pipe-end softening.

6. Water or Air Cooling System

Rapid stabilization of the socket after forming.

7. Touchscreen PLC Interface

Easy setting of parameters like temperature, time, and pressure.

8. CE or UL Certified (Optional)

For export compliance to Europe or North America.

Applications:

· Sewage and drainage pipe systems

· Pressure pipe systems

· Conduit or casing pipes

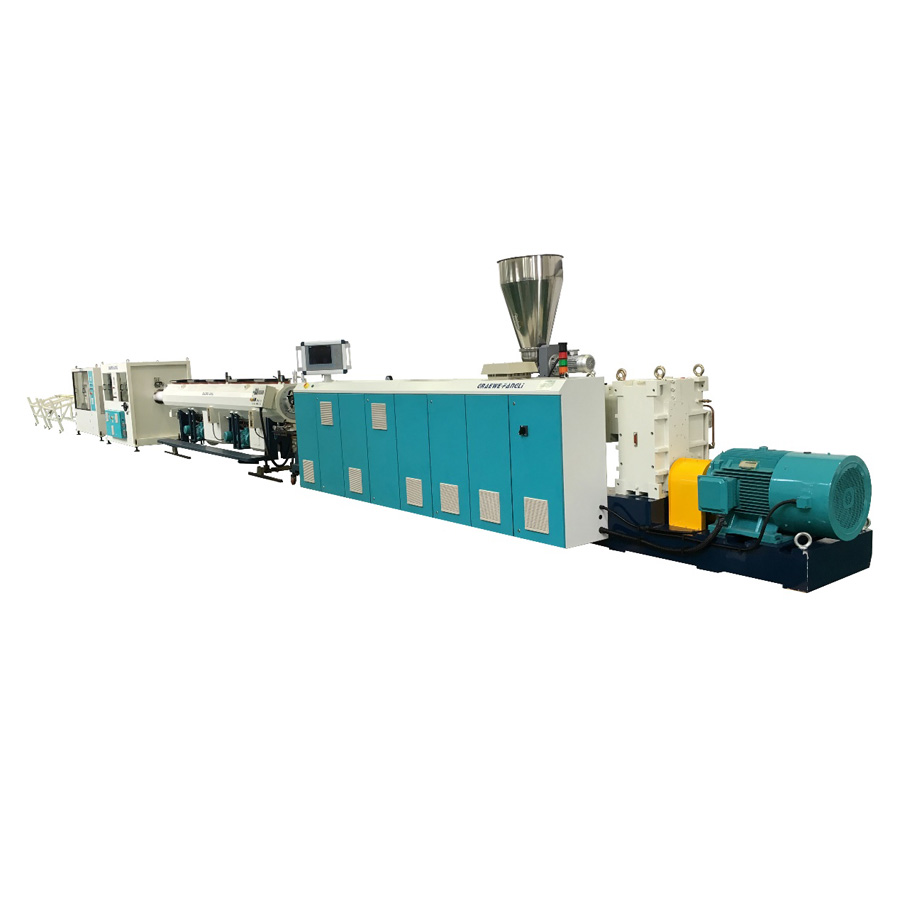

Typical Production Line Integration:

Extruder → Calibration → Cooling → Haul-off → Cutter → Fancy Belling Machine
