What is “Fancy Haul-off Equipment” in Plastic Pipe Extrusion?

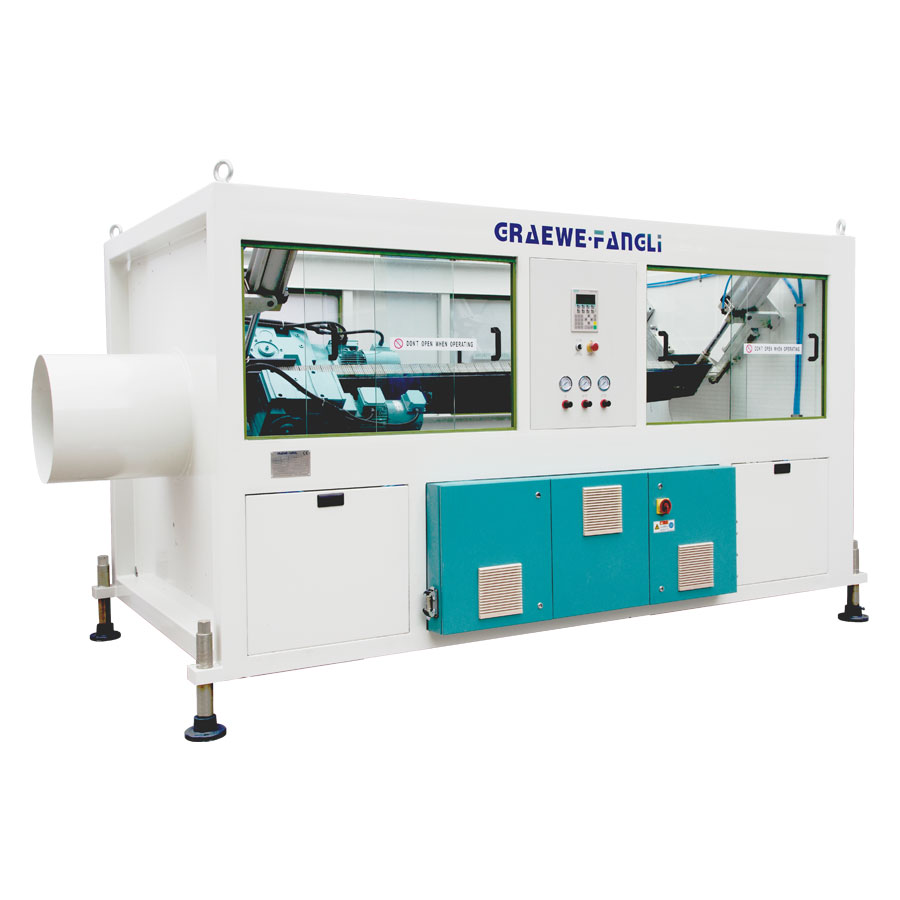

“Fancy Haul-off Equipment” refers to upgraded, high-precision versions of the standard haul-off (caterpillar) machines used in plastic pipe extrusion lines. These machines are responsible for continuously and steadily pulling the extruded pipe from the vacuum tank through downstream equipment (cutters, coilers, etc.), without deformation.

Why Call It “Fancy”?

“Fancy” here implies:

Advanced features

Automated controls

Enhanced grip & traction

Aesthetic design and safety upgrades

In short, it’s not just functional—it’s refined for performance, speed, and durability.

Core Features of Fancy Haul-off Equipment:

                    Feature                                                                                 Description

Servo or Frequency Inverter Drives                      For precise speed synchronization with extruder and cutter

Multi-belt / Multi-chain Tracks                               Better grip on large or flexible pipes (e.g., 2–12 caterpillar tracks)

Pressure-Adjustable Upper Belts                          Ensures uniform pipe pulling without deformation

Touchscreen PLC Controls                                    Smart contol of pulling speed, pressure, and alarms

Low-noise Operation                                              Sound-dampened motor systems

Quick-Change Belt Mechanism                             Reduces downtime during maintenance

Wide Pipe Diameter Range                                     From small capillary tubes (e.g. 16mm) to large HDPE pipes (e.g. 1600mm)

✅Where is Fancy Haul-off Used?

             Application                                                                                Details

HDPE/LDPE/PP Pipe Lines                                         Especially in telecom, gas, and water pipelines

Corrugated or Structured Wall Pipes                        Requires synchronized pulling force to prevent wall collapse

PEX/PERT Underfloor Heating Pipes                        Delicate pipes need smooth pulling to avoid stretching

Double-wall Pipes                                                      Demands multi-track traction with stable pressure control

High-speed Lines (30m/min+)                                   Precision pulling is critical for uniform pipe quality

✅ Advantages of “Fancy” Over Standard Haul-off:

   Standard Haul-off                                       Fancy Haul-off

Basic motor and speed dial                   Servo drive with real-time control

Manual pressure control                        Pneumatic or electronic pressure balance

Fixed belt length                                     Auto-adjusting belt tension

Minimal safety features                         Full enclosures, alarms, E-stop

Summary:

A Fancy Haul-off is not just a pulling machine—it's a precision traction system for modern, high-output pipe production lines. It ensures stable speed, clean finish, and minimal deformation, which are crucial for quality and compliance (e.g., UL/CE standards).
