Wholesale advanced Color-marking Co-extrude Equipment. Color marking co-extruder adopts the gear reducer with thrust bearing, and can realize synchronization with the main extruder and remote control, with covering less floor space, which can satisfy the requirement of different extrusion output for all kinds of marking lines.
1.Color-marking Co-extrude Equipment Product Introduction
G (high-end) series single screw marking line co-extruder
- Adopt Fangli brand optimized configuration;
- Gear reducer with thrust bearing;
- Can realize synchronization with the main extruder and remote control;
- Adopt ball joint connection;
- Can be installed in inclined or parallel with the production line to reduce the floor space;
- Adjustable center height;
- Modular design to satisfy the requirement of different extrusion output for all kinds of marking lines;
- Conform to the design of CE standard.
2. Color-marking Co-extrude Equipment Product Parameter (Specification)
Model |
Screw diameter |
L/D ratio |
Driving motor power |
Extrusion output |
Center height |
Dimension |
FLSJ25-25AG |
Ф25 |
25:1 |
AC 1.5 |
0.5~2 |
1000 |
1250×600×1600 |
FLSJ30-25AG |
Ф30 |
25:1 |
AC 1.5 |
1.5~3 |
1000 |
1400×600×1600 |

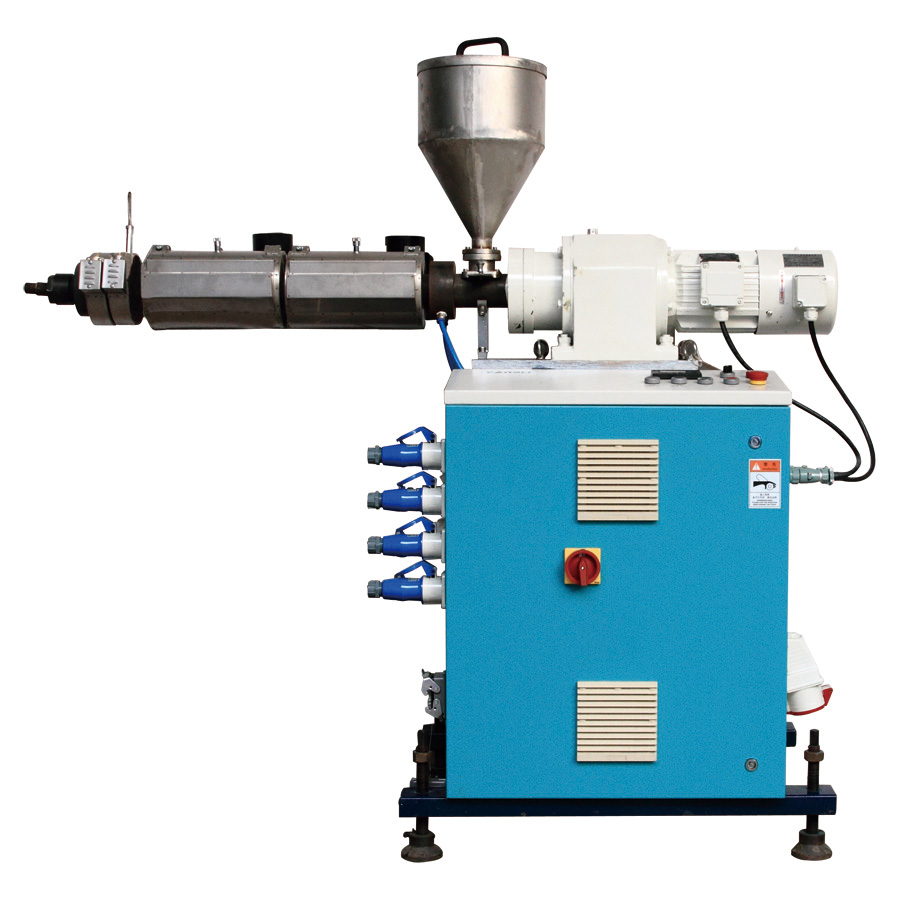

3.Color-marking Co-extrude Equipment Product Details
