Quality Haul-off Equipement.The multi crawler of haul-off machine adopts group traction mode to increase the applicable range of pipe material and configures text display.
1.Haul-off Equipement Product Introduction

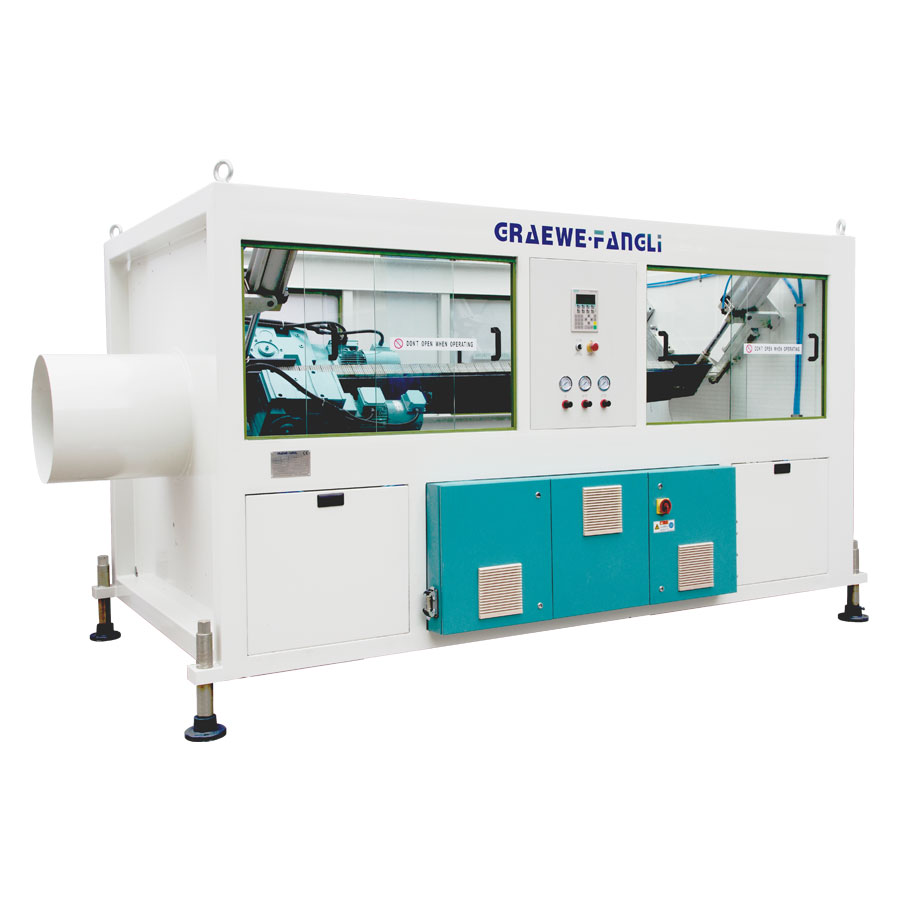

U (North American high-end) series pipe haul-off machine
- Adopt GRAEWE FANGLI brand North American high-end configuration;
- Schneider servo motor is used to drive independently;
- Configured with text display;
- The multi crawler adopts group traction mode to increase the applicable range of pipes;
- Japanese brand rotary encoder length measuring device;
- The rubber block can be removed separately.
- Conform to UL standard design.
- Developed and manufactured according to North American standard.
2. Haul-off Equipement Product Parameter (Specification)
U (North American high-end) series pipe haul-off machine
Model |
Traction pipe range |
Type of traction belt |
Number of traction belts |
Traction speed |
Center height |
Dimension |
PDQY32U/2 |
Ф12~Ф32 |
Belt |
2 |
2.0~40 |
1000 |
2080×1000×1750 |
PDQY63U/2 |
Ф16~Ф63 |
Belt |
2 |
1.5~30 |
1000 |
2400×1100×1750 |
GFQY160U/3 |
Ф20~Ф160 |
Caterpillar |
3 |
1.0~20 |
1000 |
2680×1360×1900 |
GFQY250U/4 |
Ф50~Ф250 |
Caterpillar |
4 |
0.5~10 |
1000 |
2680×1540×1900 |
GFQY315U/4 |
Ф75~Ф315 |
Caterpillar |
4 |
0.2~6.0 |
1000 |
2680×1540×1900 |
GFQY450U/4 |
Ф90~Ф450 |
Caterpillar |
4 |
0.2~5.0 |
1100 |
4400×2100×2100 |
GFQY450U/6 |
Ф90~Ф450 |
Caterpillar |
6 |
0.2~5.0 |
1100 |
4400×2100×2100 |
GFQY630U/6 |
Ф160~Ф630 |
Caterpillar |
6 |
0.1~3.0 |
1100 |
4500×2300×2300 |
GFQY800U/8 |
Ф315~Ф800 |
Caterpillar |
8 |
0.05~1.5 |
1200 |
4600×2740×2570 |
GFQY1000U/8 |
Ф400~Ф1000 |
Caterpillar |
8 |
0.03~1.0 |
1400 |
5920×3300×3000 |
GFQY1200U/8 |
Ф500~Ф1200 |
Caterpillar |
8 |
0.03~0.6 |
1600 |
6000×3660×3200 |
GFQY1600U/10 |
Ф710~Ф1600 |
Caterpillar |
10 |
0.02~0.5 |
1800 |
6100×4000×3800 |
Parameters are subject to change without prior notice
