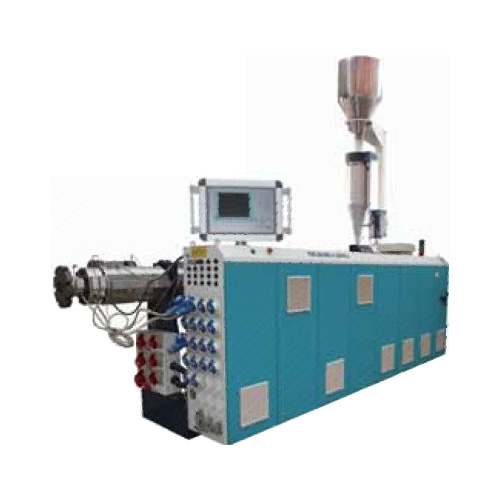

Single-screw Extruder

Advanced Single-screw Extruder.The single screw extruder adopts the design-optimized barrier screw and its matched slotting barrel, as well as the spiral groove feeding section with temperature control system, which ensures the high-efficient and stable extrusion of multiple polyolefin raw materials. The extrusion linearity is excellent and the output fluctuation is small.

Send Inquiry

Product Description

1.Single-screw Extruder Product Introduction

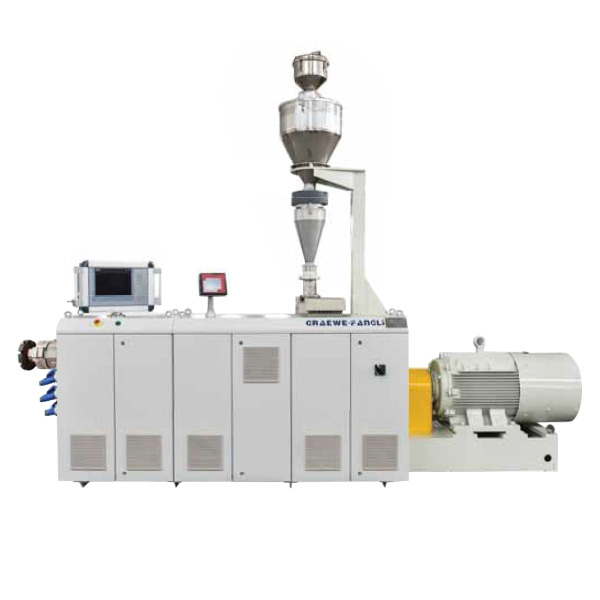

FLSP single screw extruder introduces the latest German technology, with the whole series configured with GRAEWE.FANGLI brand, which is single screw extruder with high output applied to HDPE (1000~2500mm) pipe, being an ideal equipment for extruding HDPE pipes. The Features:
-The screw is treated by nitriding, and super long diameter ratio structure ensures super plasticizing ability.
-The cylinder adopts nitriding treatment, with forced feeding section of spiral groove and air cooling system of annular groove
-The gearbox adopts the special hard tooth surface gearbox of Taiwan SUN LUNG ultra-high torque single screw extruder
-Power consumption display monitors the real-time energy consumption
-SIEMENS12〞LCD microcomputer control system
-ABB frequency converter
-Equipped with melt pressure and melt temperature measuring devices


2. Single-screw Extruder Product Parameter (Specification)

Model

Screw diameter
( mm )

L/D ratio
L/D

Driving motor power
( kW )

Extrusion output
( kg/h )

Center height
( mm )

Dimension
( mm )

FLSJ150-36AU-500

150

36

AC500

1800~2000

1600

9800×1700×5000

Technical parameters (FLSJ-36AG series- AC motor):

Model

Screw diameter
( mm )

L/D ratio
L/D

Driving motor power
( kW )

Extrusion output
(HDPE,kg/h )

Center height
( mm )

Dimension
( mm )

FLSJ45-36AG

Ф45

36:1

AC 55

180~200

1000

4500×1200×2000

FLSJ60-36AG

Ф60

36:1

AC 110

400~450

1000

5250×1250×2050

FLSJ75-36AG

Ф75

36:1

AC 160

550~600

1000

6200×1350×2100

FLSJ90-36AG

Ф90

36:1

AC 250

800~900

1100

7200×1450×2150

FLSJ120-36AG

Ф120

36:1

AC 355

1250~1400

1200

8600×1500×2450

FLSJ150-36AG

Ф150

36:1

AC 450

1500~1600

1400

9200×1600×2850

Parameters are subject to change without prior notice

Technical parameters (FLSJ-36DG series- DC motor):

Model

Screw diameter
( mm )

L/D ratio
L/D

Driving motor power
( kW )

Extrusion output
(HDPE,kg/h )

Center height
( mm )

Dimension
( mm )

FLSJ45-36DG

Ф45

36:1

DC 55

180~200

1000

3700×1200×2000

FLSJ60-36DG

Ф60

36:1

DC 110

400~450

1000

4250×1250×2050

FLSJ75-36DG

Ф75

36:1

DC 160

550~600

1000

5100×1350×2100

FLSJ90-36DG

Ф90

36:1

DC 250

800~900

1100

6300×1450×2150

FLSJ120-36DG

Ф120

36:1

DC 355

1250~1400

1200

7400×1500×2450

FLSJ150-36DG

Ф150

36:1

DC 450

1500~1600

1400

8100×1600×2850

Parameters are subject to change without prior notice

Technical parameters (FLSJ-40AG series- AC motor):

Model

Screw diameter
( mm )

L/D ratio
L/D

Driving motor power
( kW )

Extrusion output
(HDPE,kg/h )

Center height
( mm )

Dimension
( mm )

FLSJ60-40AG

Ф60

40:1

AC 160

600~650

1000

5400×1300×2100

FLSJ75-40AG

Ф75

40:1

AC 225

800~900

1000

6500×1400×2200

FLSJ90-40AG

Ф90

40:1

AC 315

1100~1250

1100

7600×1500×2300

Parameters are subject to change without prior notice

Technical parameters (FLSJ-36AU series- AC motor):

Model

Screw diameter
( mm )

L/D ratio
L/D

Driving motor power
( kW )

Extrusion output
(HDPE,kg/h )

Center height
( mm )

Dimension
( mm )

FLSJ45-36AU

Ф45

36:1

AC 55

180~200

1000

4500×1200×2000

FLSJ60-36AU

Ф60

36:1

AC 110

400~450

1000

5250×1250×2050

FLSJ75-36AU

Ф75

36:1

AC 160

550~600

1000

6200×1350×2100

FLSJ90-36AU

Ф90

36:1

AC 250

800~900

1100

7200×1450×2150

FLSJ120-36AU

Ф120

36:1

AC 355

1250~1400

1200

8600×1500×2450

FLSJ150-36AU

Ф150

36:1

AC 450

1500~1600

1400

9200×1600×2850

FLSJ150-36AU

-500

Ф150

36:1

AC 500

1500~1600

1600

9500×1600×2850

Parameters are subject to change without prior notice

Technical parameters (FLSJ-36DU series- DC motor):

Model

Screw diameter
( mm )

L/D ratio
L/D

Driving motor power
( kW )

Extrusion output
(HDPE,kg/h )

Center height
( mm )

Dimension
( mm )

FLSJ45-36DU

Ф45

36:1

DC 55

180~200

1000

3700×1200×2000

FLSJ60-36DU

Ф60

36:1

DC 110

400~450

1000

4250×1250×2050

FLSJ75-36DU

Ф75

36:1

DC 160

550~600

1000

5100×1350×2100

FLSJ90-36DU

Ф90

36:1

DC 250

800~900

1100

6300×1450×2150

FLSJ120-36DU

Ф120

36:1

DC 355

1250~1400

1200

7400×1500×2450

FLSJ150-36DU

Ф150

36:1

DC 450

1500~1600

1400

8100×1600×2850

Parameters are subject to change without prior notice

Technical parameters (FLSJ-40AU series- AC motor):

Model

Screw diameter
( mm )

L/D ratio
L/D

Driving motor power
( kW )

Extrusion output
(HDPE,kg/h )

Center height
( mm )

Dimension
( mm )

FLSJ60-40AU

Ф60

40:1

AC 160

600~650

1000

5400×1300×2100

FLSJ75-40AU

Ф75

40:1

AC 225

800~900

1000

6500×1400×2200

FLSJ90-40AU

Ф90

40:1

AC 315

1100~1250

1100

7600×1500×2300

Parameters are subject to change without prior notice


3.Single-screw Extruder Product Details
