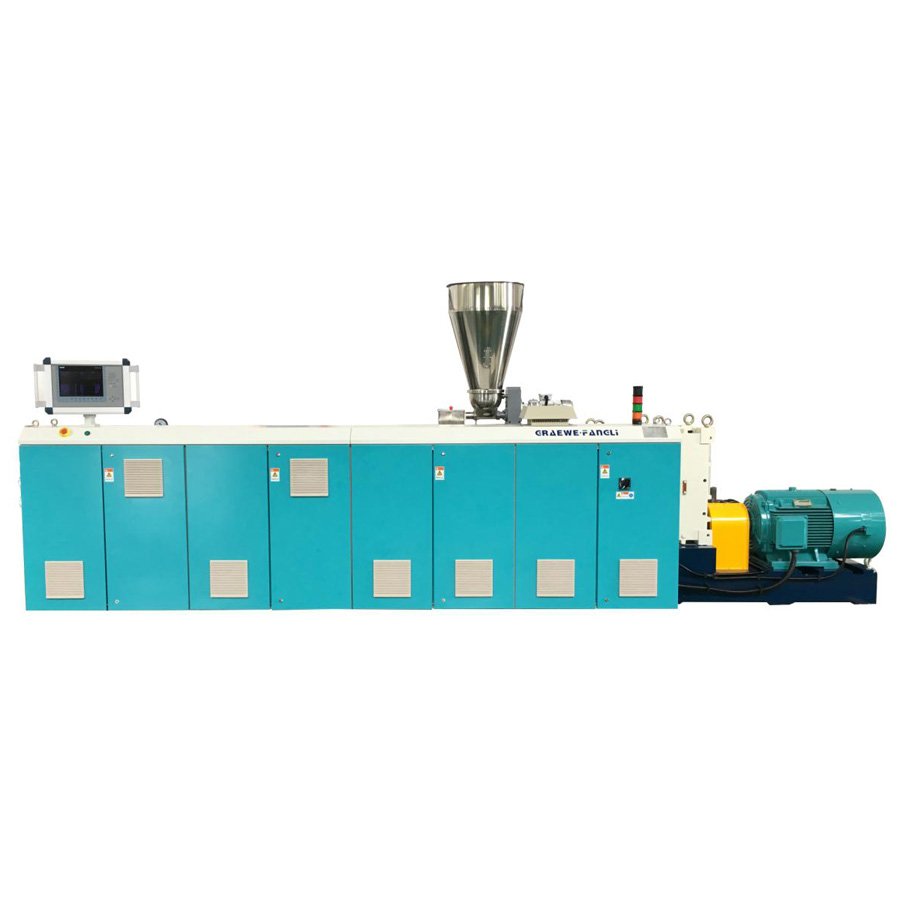

Counter Rotating Parallel Type Twin-screw Extruder

Durable Counter Rotating Parallel Type Twin-screw Extruder is specially used for extruding UPVC, PVC-UH, PVC- O pipes, with higher unit power extrusion capacity and energy saving effect, better melt uniform mixing effect and plasticizing effect, wider processing window and flexibility for different raw materials, being an ideal equipment for extruding high-performance rigid PVC-UH pipes.

Send Inquiry

Product Description

1.Counter Rotating Parallel Type Twin-screw Extruder Product Introduction

FLSP 36 length-diameter ratio series counter rotating parallel twin screw extruder introduces the newest technology from Germany. The high-end G type adopts EU standard, and the North American high-end U type adopts North American standard. It is specially applied to counter rotating parallel twin screw extruder for extruding UPVC, PVC-UH, PVC- O pipes. Compared with the traditional counter rotating parallel twin screw extruders with the L/D ratio of 26 or 28, this product has higher unit power extrusion capacity and energy saving effect, better melt uniform mixing effect and plasticizing effect, wider processing window and flexibility for different raw materials, being an ideal equipment for extruding high-performance rigid PVC-UH pipes.


2. Counter Rotating Parallel Type Twin-screw Extruder Product Parameter (Specification)

Model

Screw diameter
( mm )

Length-diameter ratio
L/D

Drive motor power
( kW )

Extrusion output
( kg/h )

Center height
( mm )

Overall dimension
( mm )

FLSP75-36AG

75

36

AC45

350~400

1000

4700×1400×2400

FLSP90-36AG

90

36

AC75

600~700

1000

6700×1400×2500

FLSP114-36AG

114

36

AC110

900~1000

1100

7650×1500×2650

FLSP133-36AG

133

36

AC160

1300~1400

1200

8260×1550×2750

FLSP75-36AU

75

36

AC45

350~400

1000

4700×1400×2400

FLSP90-36AU

90

36

AC75

600~700

1000

6700×1400×2500

FLSP114-36AU

114

36

AC110

900~1000

1100

7650×1500×2650

FLSP133-36AU

133

36

AC160

1300~1400

1200

8260×1550×2750



3. Counter Rotating Parallel Type Twin-screw Extruder Product Feature And Application

1.The screw is treated by nitriding and hard chromium plating, and the super length diameter ratio structure realizes high quality and high yield extrusion. 2.The cylinder adopts nitriding treatment, and the double exhaust port structure of natural exhaust + vacuum exhaust ensures the full discharge and separation of volatile matter and powder solid matter, with 3-stage spiral groove circulating water cooling system. 3.The gearbox adopts the special hard tooth surface gearbox of Taiwan Sanlong ultra high torque counter rotating twin screw extruder. 4.The screw core adopts distilled water internal circulation temperature regulation system, which reduces the maintenance cost. 5.The exhaust system adopts the dual exhaust system of natural exhaust and vacuum exhaust. 6.The power consumption display monitors the energy consumption status constantly. 7.Siemens 12 "LCD microcomputer control system 8.ABB frequency converter 9.Equipped with a sensing and measuring device for melt pressure and melt temperature to realize separate detection


4.Product Details of Counter Rotating Parallel Type Twin-screw Extruder
