Low price Belling Equipement. Pipe Belling Machine is applied for UPVC (PVC-UH) plastic pipes. It is highly automating, stable and reliable, easier operation.
1.Belling Equipement Product Introduction
The pipe belling machine is designed for UPVC (PVC-UH) plastic pipes. It can combine with the plastic pipe production line or sole use. The equipment is mainly composed of a feeding traction mechanism, a heating mechanism, a flared mechanism (including Die), and a framework. The equipment is highly automating, stable and reliable and easier operating; the internal inflation pressure is shaped and the wall thickness is uniform; The belling can be different according to the plasticity of the material. The belling die can be expanded first and then casing, or first casing and then expansion. It has strong process adaptability, smooth flaring and obvious steps, consistent and intact size.
2. Belling Equipement Product Parameter (Specification)
Model |
Pipe OD Range |
Heating Power |
Total Power |
Cooling type |
Center Height |
SGK63-2 |
2×Ф20~Ф63 |
4 |
5.6 |
Air Cooling |
1000 |
SGK250 |
Ф50~Ф250 |
7.2 |
12.5 |
|
1000 |
SGK450 |
Ф160~Ф400 |
15.6 |
22 |
Water Cooling |
1100 |
SGK630 |
Ф315~Ф630 |
25.4 |
36.2 |
|
1100 |
Parameters are subject to change without prior notice
3.Belling Equipement Product Feature And Application
·PLC, fully automatic install sealing ring
·Used for UPVC (PVC-UH) plastic pipes
·Flat or R-shaped belling
·Air cooling for small diameter pipe
·Water cooling for large diameter pipe
·Rubber ring fixed structure - PVC-UH

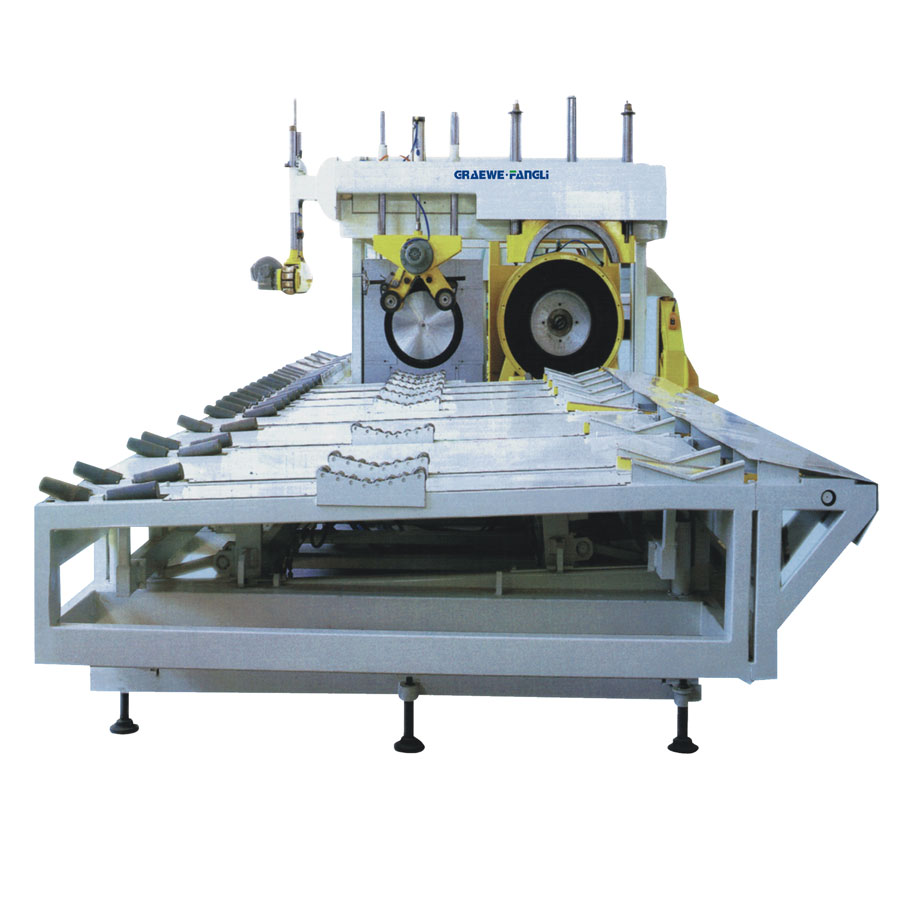

4.Belling Equipement Product Details
