The Chipless Cutting Equipement can ensure that the pipe cutting end face is smooth and beautiful, and will not produce powder.
1.Chipless Cutting Equipement Product Introduction

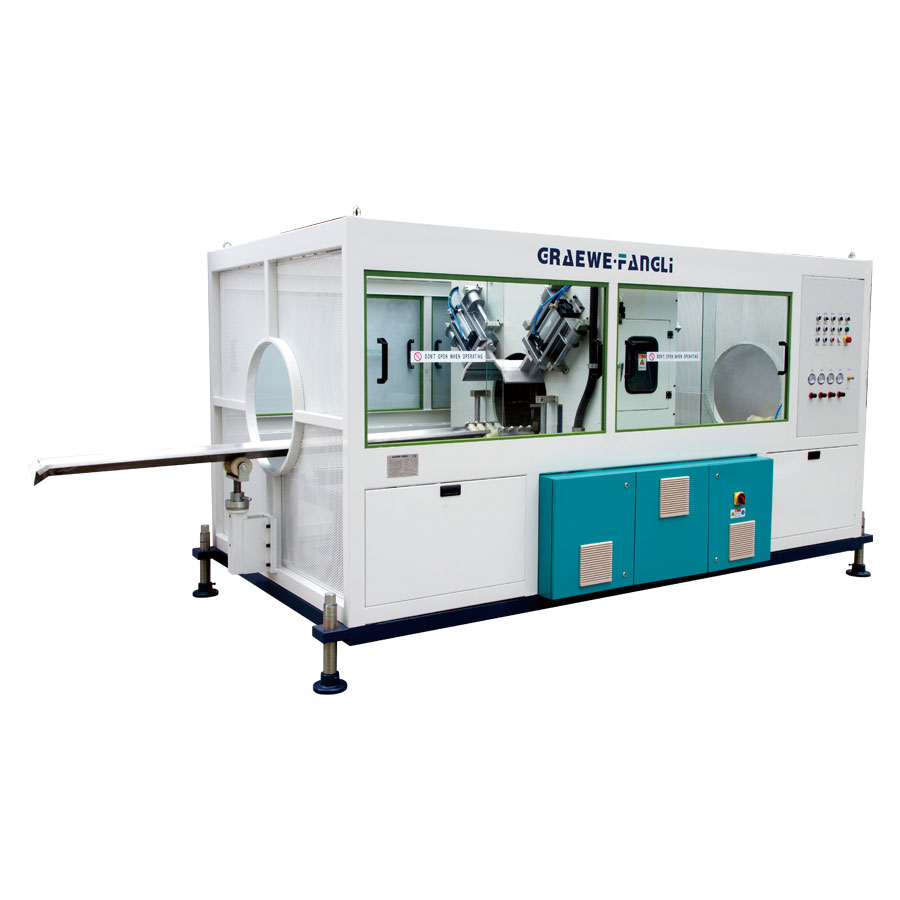

U (North American high-end) series pipe chip free cutting machine
- Adopt GRAEWE FANGLI brand North American high-end configuration;
- Chip-free blade cutting up to Ф 1600mm;
- High precision linear guide rail drive;
- High frequency flying knife for small pipe;
-V-type clamping is adopted for specifications above Ф250 (including), without replacement of HALF block;
- With door opening and power-off function;
- PC board sliding door;
- Conform to UL standard design;
- Developed and manufactured according to North America standard.
2. Chipless Cutting Equipement Product Parameter (Specification)
U (North American high-end) series pipe chip free cutting machine
Model |
Pipe cutting range |
Maximum cutting wall thickness |
Cutting mode |
Center height |
Dimension |
FDQG32U |
Ф16~Ф32 |
6 |
Flying knife cutting |
1000 |
520x620x1200 |
FDQG63U |
Ф16~Ф63 |
10 |
Flying knife cutting |
1000 |
840×720×1300 |
WQQG63U |
Ф16~Ф63 |
12 |
Pneumatic chip free cutting |
1000 |
2600×1100×1600 |
WQQG160U |
Ф20~Ф160 |
20 |
Pneumatic chip free cutting |
1000 |
2800×1200×1600 |
WYQG250U |
Ф50~Ф250 |
25 |
Hydraulic chip free cutting |
1000 |
2900×1500×1600 |
WYQG315U |
Ф75~Ф315 |
30 |
Hydraulic chip free cutting |
1000 |
2900×1600×1600 |
WYQG450U |
Ф90~Ф450 |
45 |
Hydraulic chip free cutting |
1100 |
3100×2000×2000 |
WYQG630U |
Ф160~Ф630 |
60 |
Hydraulic chip free cutting |
1100 |
3100×2150×2200 |
WYQG800U |
Ф315~Ф800 |
65 |
Hydraulic chip free cutting |
1200 |
3100×2250×2400 |
WYQG1000U |
Ф400~Ф1000 |
70 |
Hydraulic chip free cutting |
1400 |
3500×2200×2500 |
WYQG1200U |
Ф500~Ф1200 |
70 |
Hydraulic chip free cutting |
1600 |
3500×2500×2900 |
WYQG1600U |
Ф710~Ф1600 |
70 |
Hydraulic chip free cutting |
1800 |
3500×3000×3600 |
Parameters are subject to change without prior notice
3.Chipless Cutting Equipement Product Details
