Planetary Cutting Equipement is made for cutting medium, large, super large diameter and thick-walled UPVC (PVC-UH). Use planetary saw blade to cut and chamfer, the cutting and chamfer edge are smooth and flat.
1.Planetary Cutting Equipement Product Introduction
The planetary cutting machine is a new type of environmentally friendly cutting equipment developed according to the market demand of UPVC (PVC-UH) pipe. It is suitable for cutting medium and large diameter, super large diameter and thick wall pipes. The planetary cutting machine is mainly composed of a welding frame, a cutting trolley that moves synchronously with the pipe to be cut, a pneumatic control, a hydraulic system, an electrical control, and a dust collection device, etc. This machine adopts PLC control, which can be modified according to the size of the pipe or the extrusion speed. Better and more effective data can improve the stability of the machine, the operation is simpler and more durable, and it provides a strong guarantee for customers to produce high-end products.
2. Planetary Cutting Equipement Product Parameter (Specification)
Model |
Pipe OD Range |
Max.Thickenss |
Cutting mode |
Center height |
Dimension |
XXQG250-V |
Ф50~Ф250 |
25 |
Planetary cutting |
1000 |
2570×1510×1750 |
XXQG450-V |
Ф90~Ф450 |
40 |
1100 |
3300×2100×2100 |
|
XXQG630-V |
Ф160~Ф630 |
60 |
1100 |
3500×2400×2200 |
|
XXQG800-V |
Ф315~Ф800 |
65 |
1200 |
3600×2400×2200 |
Parameters are subject to change without prior notice
3.Planetary Cutting Equipement Product Feature And Application
· Saw blade planetary cutting
· Hydraulic feed with chamfering function
· Inverter adjusts the speed of the turntable
· Siemens PLC control, increase automation, fixed-length cutting, automatic alarm
· Special carbide saw blades for thick-walled pipes
·Powerful sawdust collector
·Special saw blade reduces frictional heat and improves the flatness of the cutting surface

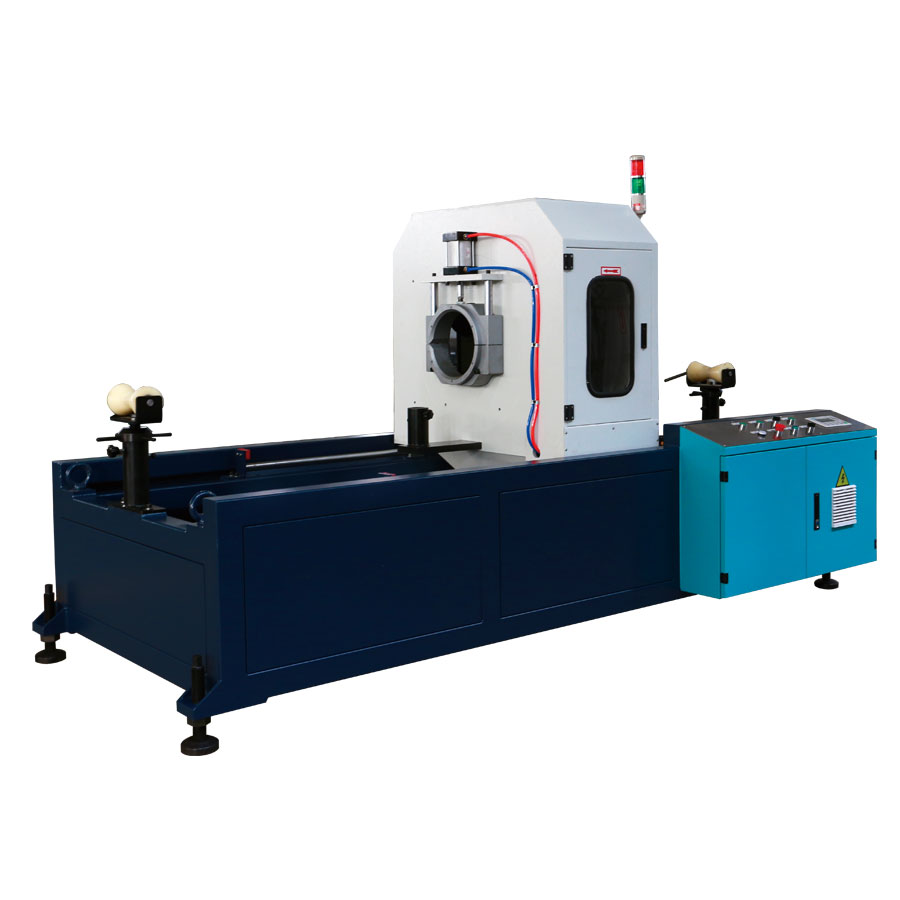

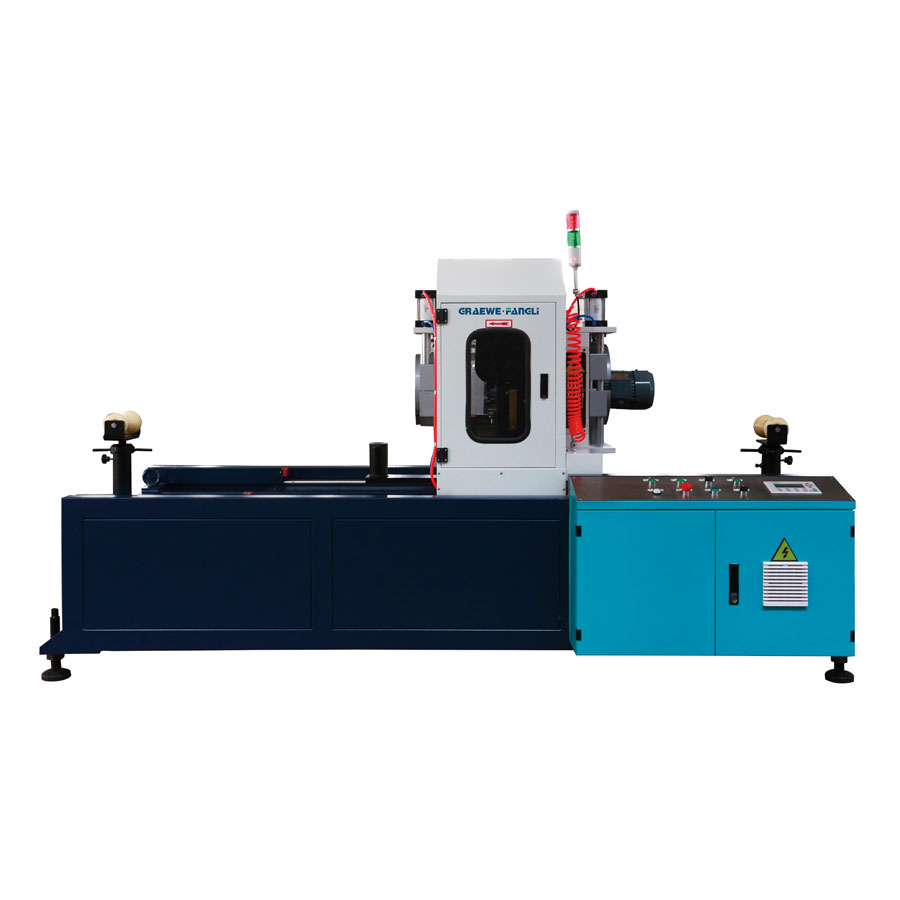

4.Planetary Cutting Equipement Product Details
